Alvi Small Charnley Style Locking Frame Set
Designed by Hasham Alvi, MD
A self-retaining frame and retractor system designed for use during anterior total hip arthroplasty, the blades help retract the hip capsule and musculature, permitting an unobstructed view of the acetabulum while freeing an assistant

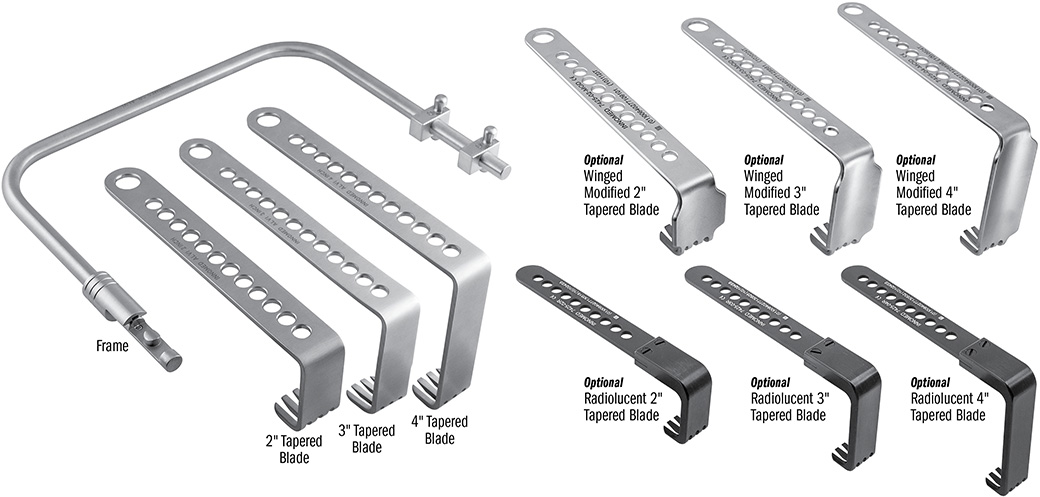

Set includes one locking frame (7425-01) and one each of the three blade sizes: 2″ (7425-02), 3″ (7425-03), and 4″ (7425-04).
(Optional Winged Modified Tapered Blades not included in set.)
Product Number(s)
7425-00 [Set]
Set Includes / Available individually:
7425-01 [Locking Frame]
7425-02 [2″ Tapered Blade]
7425-03 [3″ Tapered Blade]
7425-04 [4″ Tapered Blade]
Optional Winged Modified Blades (Not included in Set):
7425-02-MOD [Winged Modified 2″ Tapered Blade]
7425-03-MOD [Winged Modified 3″ Tapered Blade]
7425-04-MOD [Winged Modified4″ Tapered Blade]
Optional Radiolucent Blades (Not included in Set):
7425-02R [Radiolucent 2″ Tapered Blade]
7425-03R [Radiolucent 3″ Tapered Blade]
7425-04R [Radiolucent 4″ Tapered Blade]
