Chaudhari Universal Nail Entry Guide
Designed by Ashutosh S. Chaudhari, MD

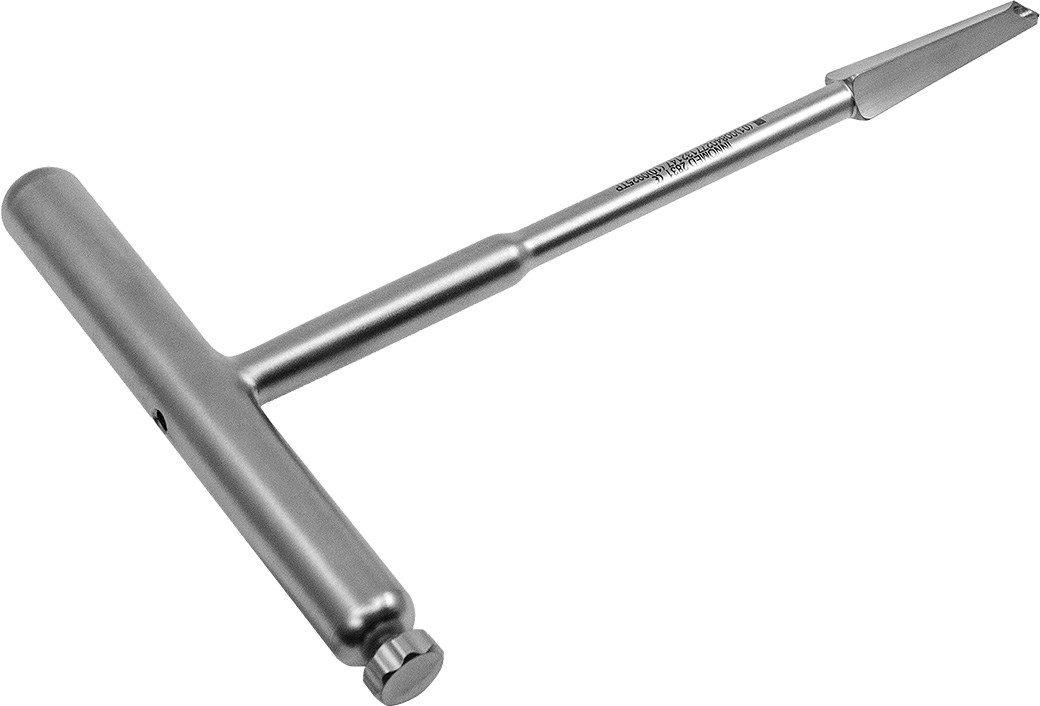

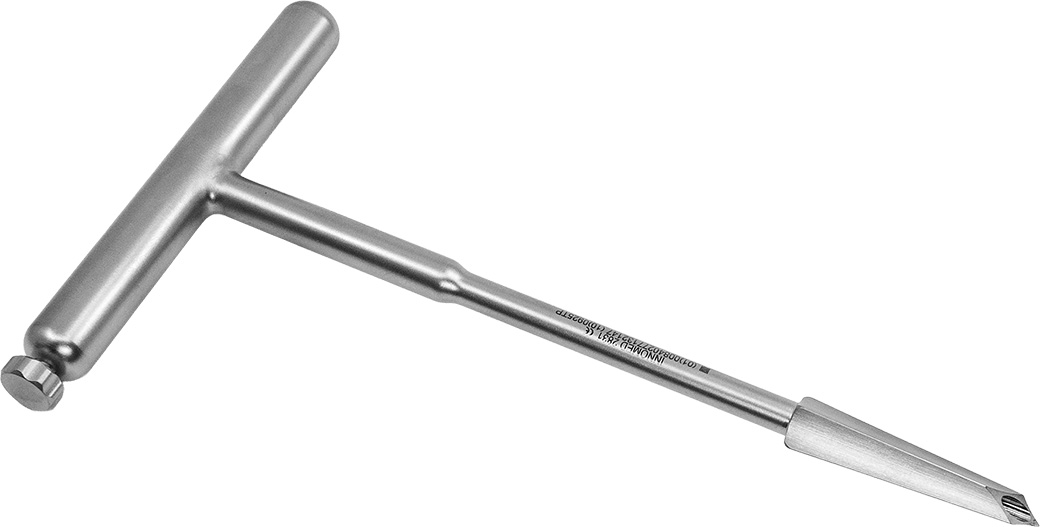

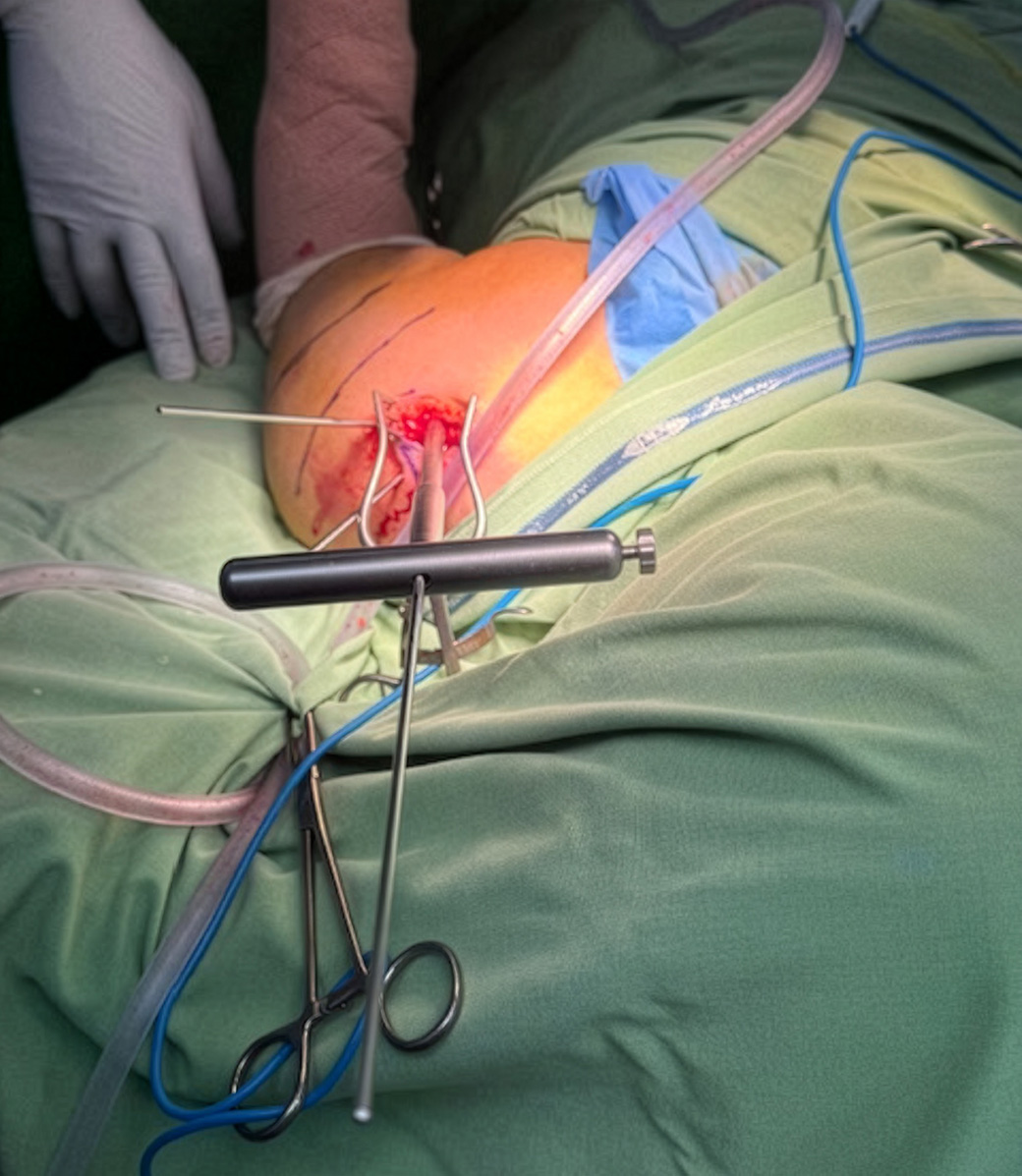

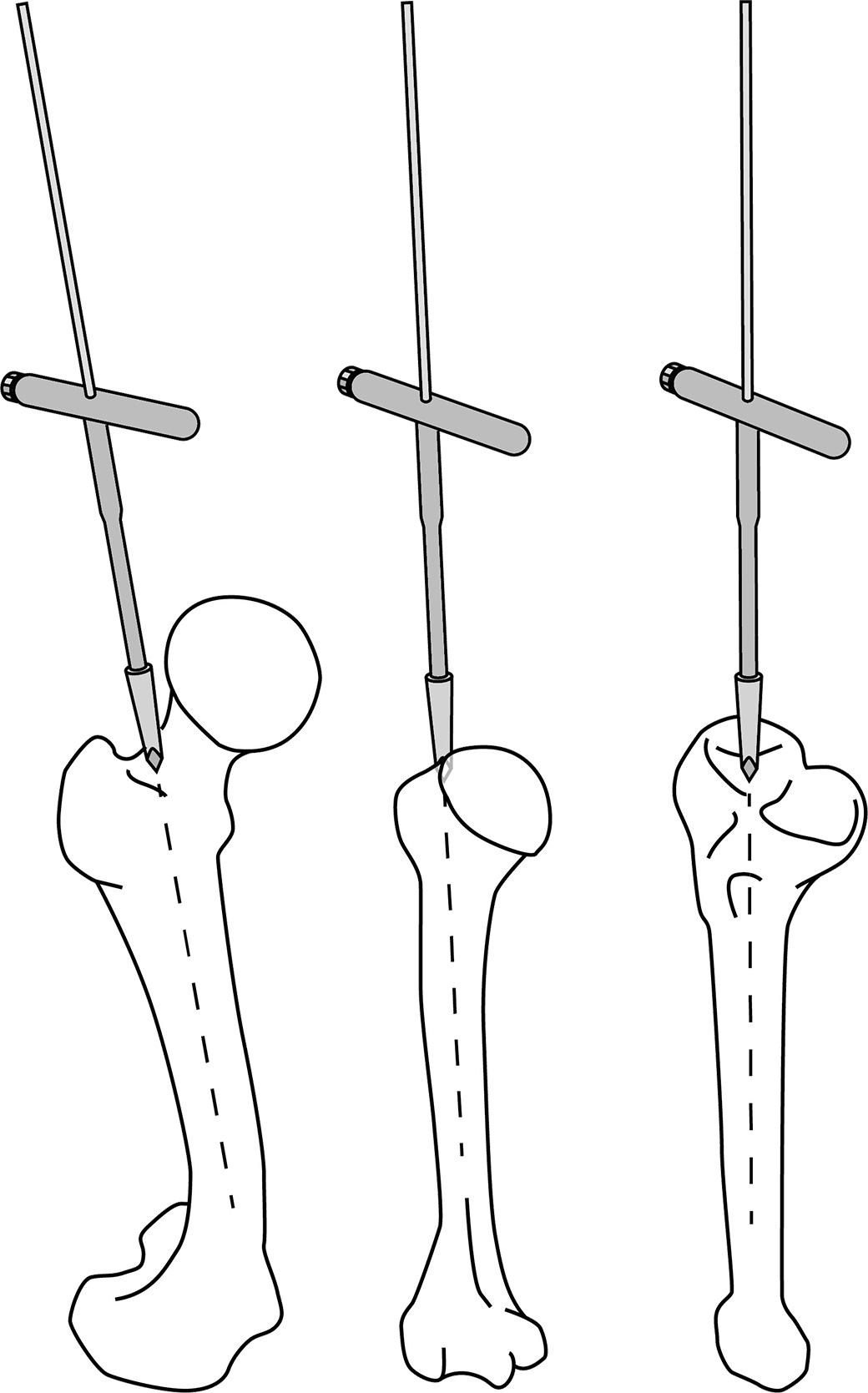

Universal entry point cannulated awl can be used for PFN nailing in hip fractures, femur antegrade and retrograde nailing, tibia nailing, and proximal humerus nailing

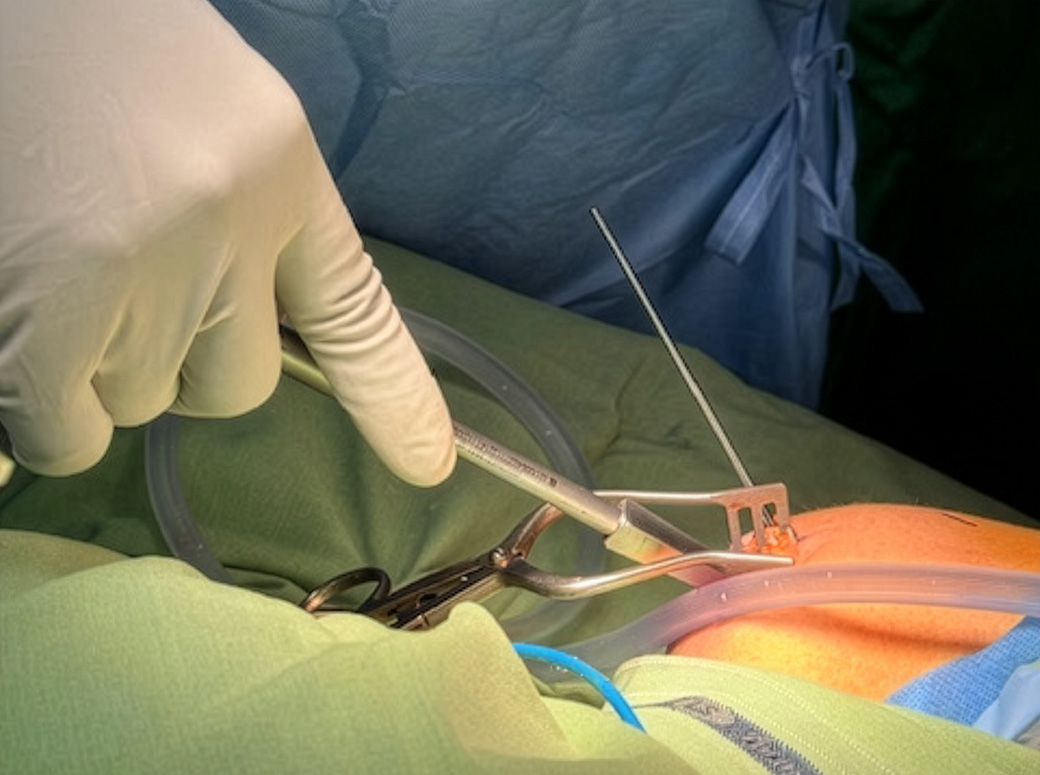

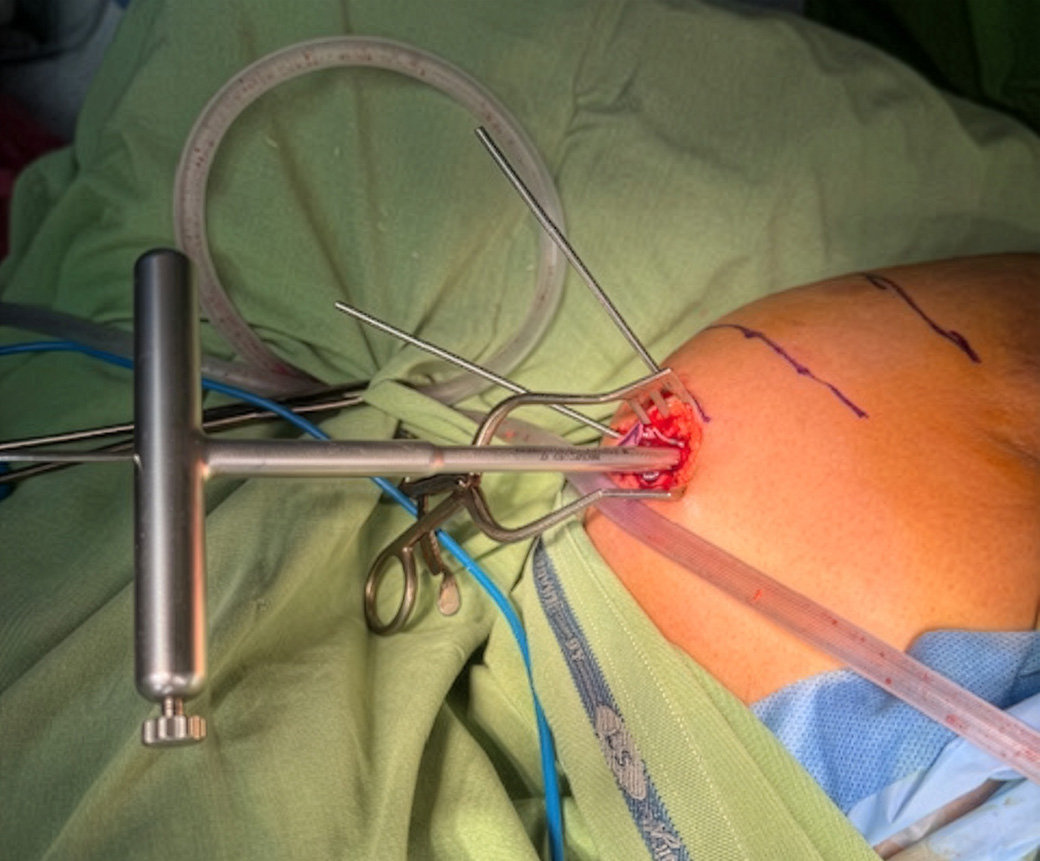

Used to manipulate the guide wire in two planes to help get perfect entry trajectory.

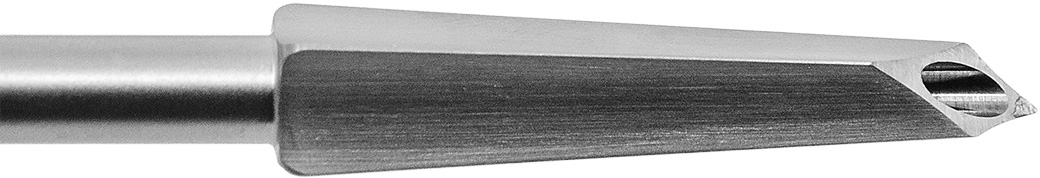

The locking screw on the end of the handle can be used to lock the guide wire in the cannulated channel.
Product Number(s)
2831
Dimensions
Overall Length (unfolded): 15.25″ (38,8 cm)
Dimensions Triangle Folded: 4″ x 4.25″ (10,2 x 10,8 cm)
Accuracy Statement for devices with a measuring function: Devices with a measuring function are considered non-critical, non-calibrated, and are intended for reference-only measurements. While it provides a helpful visual guide for relative measurements, it is not calibrated to specific precision standards. Measurements taken with this device should not be considered accurate enough for critical applications requiring strict dimensional tolerances. General manufacturing tolerances of +\- 1% at each graduation, or 2% of the full scale apply, but no conformance qualifications are provided or implied.
