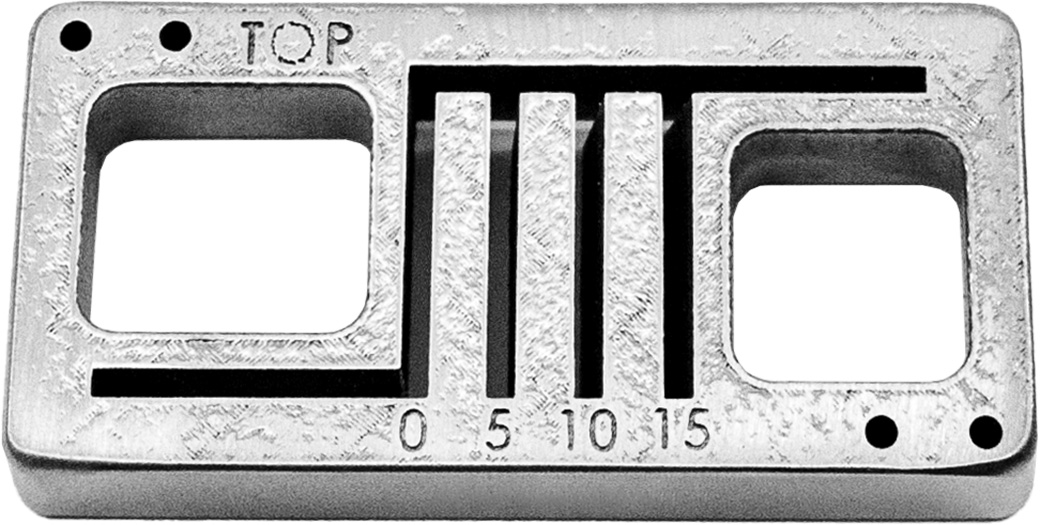

DeOrio Calcaneal Z-Osteotomy Guide
Designed by James K. DeOrio, MD
Designed to help guide a z-osteotomy of the calcaneus

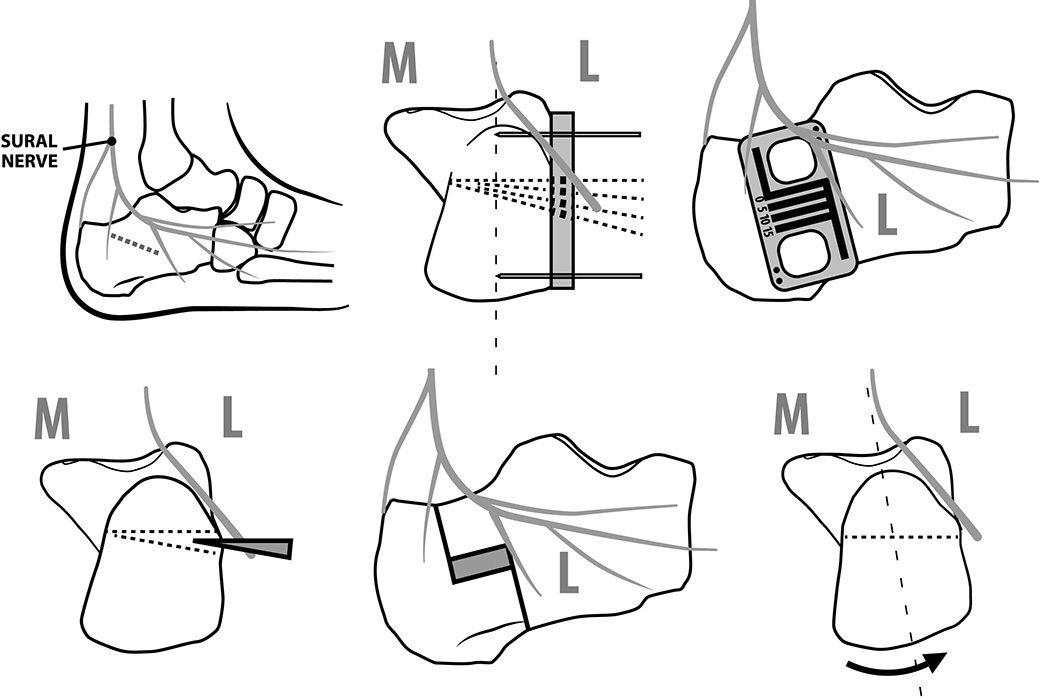

The guide frame can be attached to the calcaneus with 1.6 mm pins, and one horizontal cut made at 0° and second cut at either 5°,10° or 15°—using the cutting block guide — to meet 3 cm horizontally from the horizontal cut to create an osteotomy wedge for removal. Designed for use with a 50.0 mm X 9.0 mm X 0.61 mm saw.
Product Number(s)
1377
Dimensions
2″ x 1″ x .313″ (5,1 x 2,5 x 0.8 cm)
