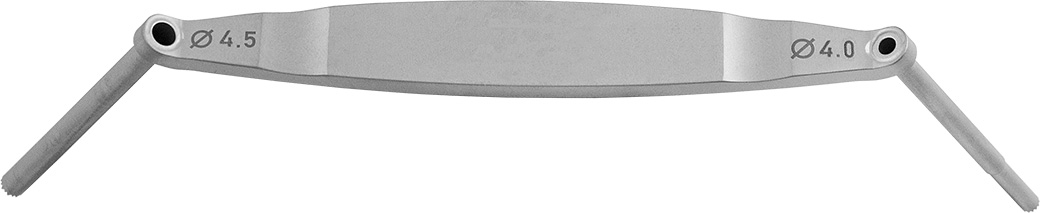

Extended Drill Sleeves – 4.5/4.0 mm
Reza Firoozabadi, MD
Designed to help reduce fractures when k-wires are passed through, the extra long drill sleeve helps to protect soft tissues and prevent the need for stacking two drill sleeves
- • Serrated tips allow for better grip when drilling at an angle or when pushing a fracture fragment to assist with fracture reduction
- • Sleeve can be used as a reduction aid with placement of a kirschner wire through sleeve
- • Collaborated tips which allow placement of appropriate size drills for lagging by technique — as an example a 2.5 end will fit into a 3.5 drill hole
Product Number(s)
3014-04
Dimensions
Overall Length: 6.875″ (17,6 cm)
Handle Length: 4.875″ (12,4 cm)
Guide Tube Length: 2.25″ (5,7 cm)
Guide Angle from Handle: 30°
