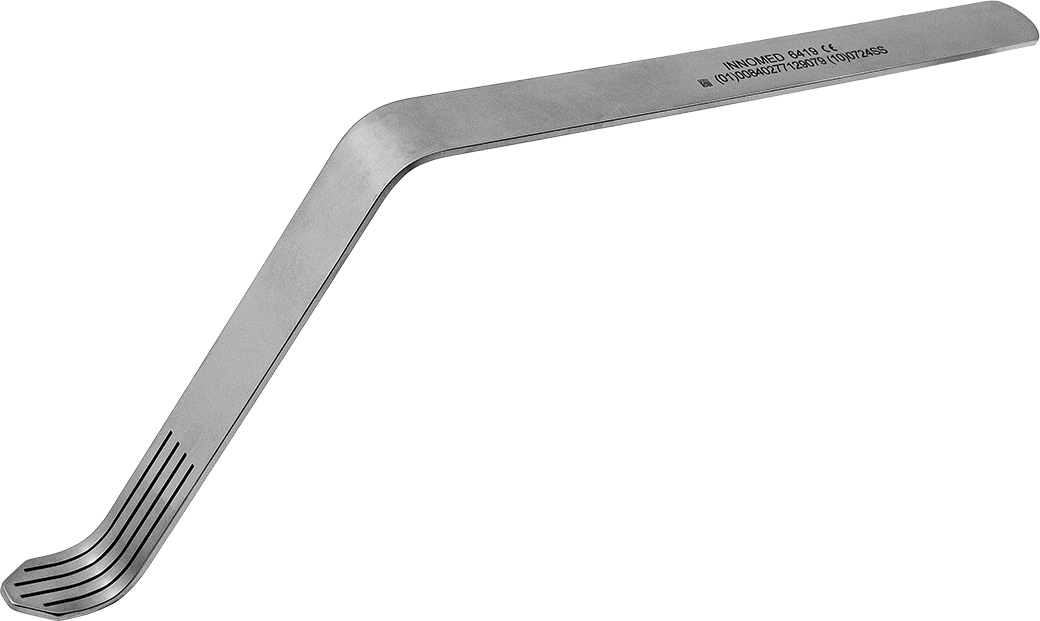

Fajardo-Sun Femoral Neck Reference Retractor for Anterior THA
Designed by Jesse Fajardo, MD

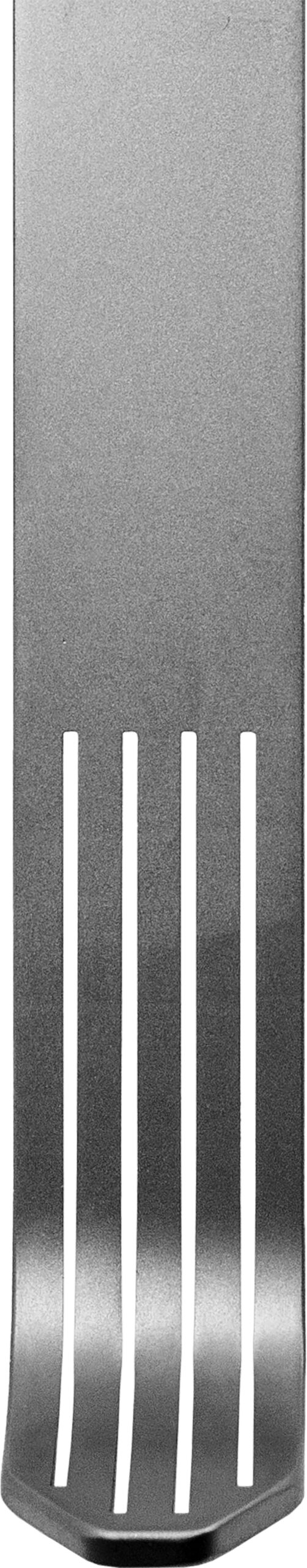

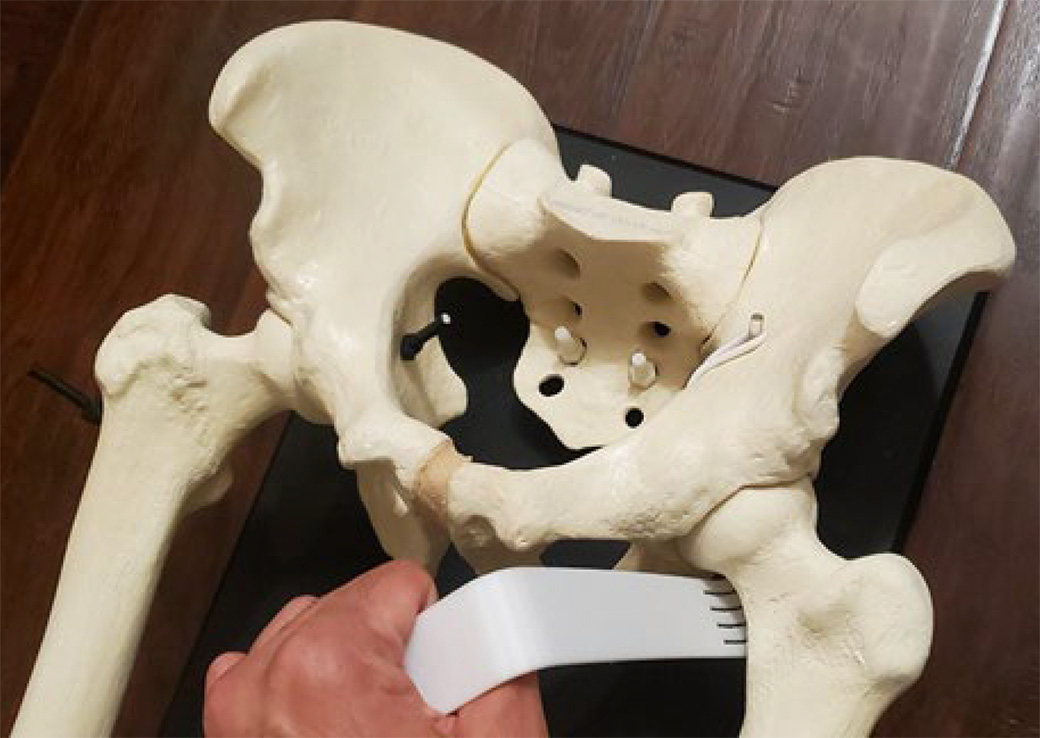

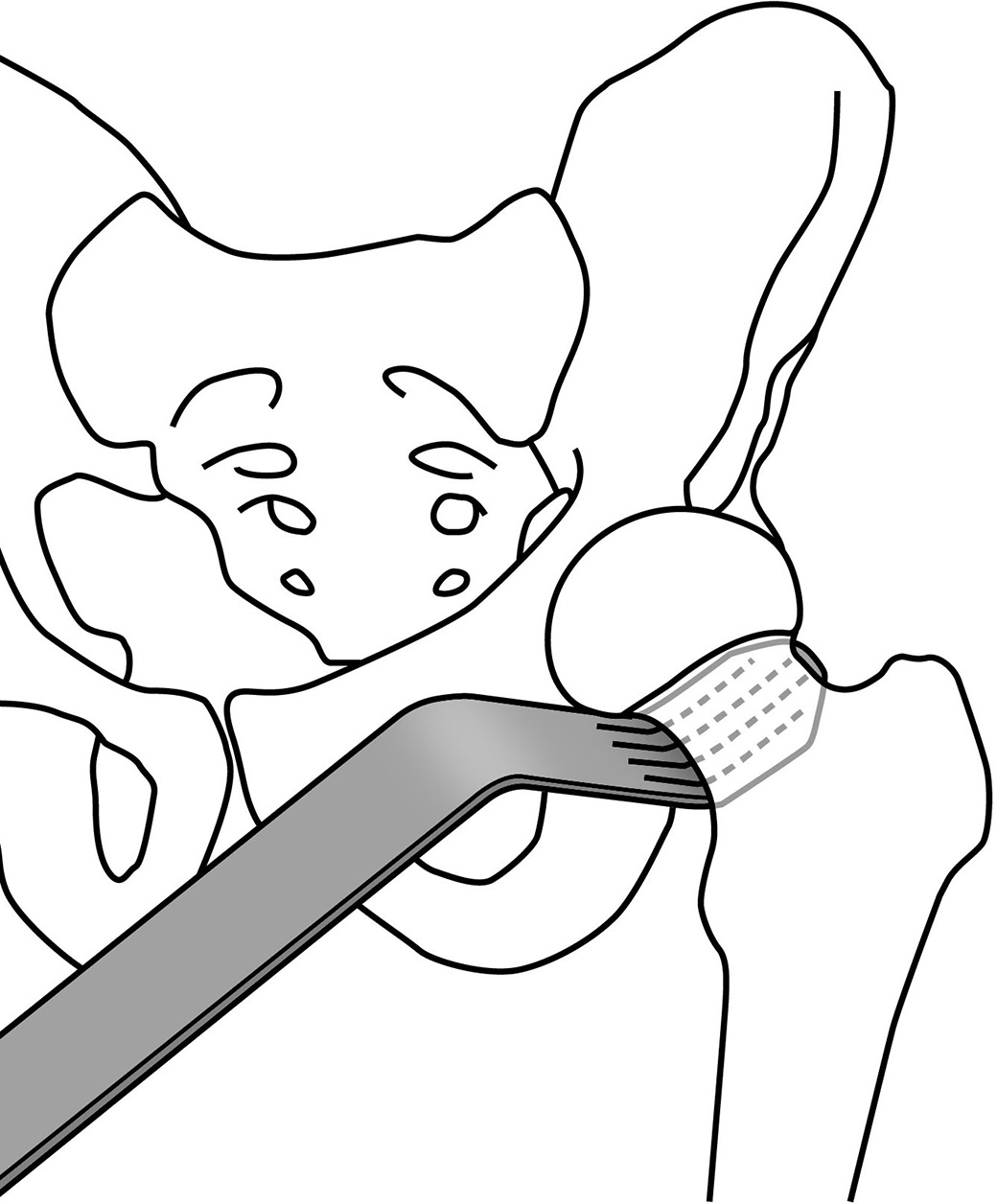

Designed to be placed along the inferior femoral neck during anterior total hip arthroplasty to help expose the femoral neck, the retractor also has cutouts that allow the surgeon to mark the femoral neck for osteotomy at the desired level referencing the lesser trochanter, with the cutouts indicating 4 mm, 8 mm, 12 mm, and 16 mm
Can also be used in upper or lower extremity procedures where retracting and making measurements is needed, especially if fluoroscopy is used, because the known dimensions of the retractor and cutouts help provide scale to the fluoroscopic image. Features 1 mm cutouts every 4 mm.
Product Number(s)
6419
Dimensions
Overall Length: 13″ (33 cm)
Handle Length: 8.5″ (21,6 cm)
Blade Width: .8″ (2 cm)
Blade Drop: 5.5″ (14 cm)
Blade Outcropping: 1″ (2,54 cm)
