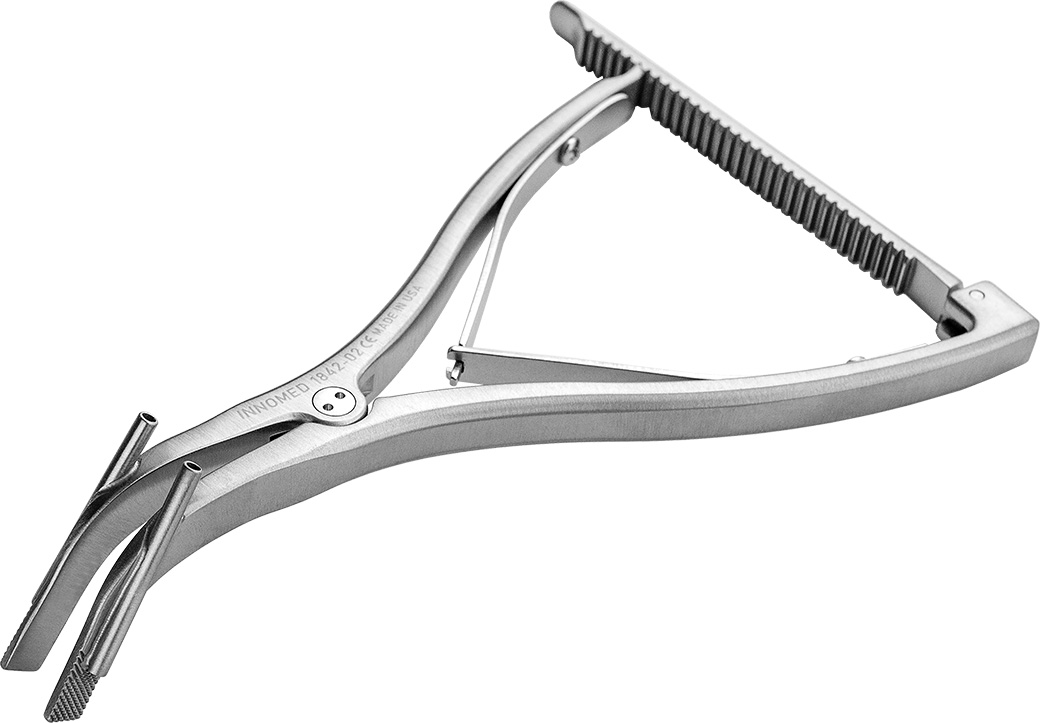

Ortho Self Retaining Retractor with Pin Guides
Sean Dunn, DPM
Designed for small joint use with pin guides that are set back to allow either direct distraction or distraction with pins
Uses include:
• Osteotomy distraction (such as the Evans or Cotton in the foot)
• Joint distraction for arthodesis or lengthening applications
• Fracture distraction
• Parallel pin guides allow pins up to 2 mm
• Serrated outside blades extend .4″ (1 cm) beyond end of pin guides
Product Number(s)
1842-02
Dimensions
Overall Length: 6.5″ (16,5 cm)
Blade Width: 7 mm
Blade Extension (beyond guides): .4″ (1 cm)
Blade Thickness: 1.68 mm
Pin Guide Length: 1.25″ (3,2 cm)
Pin Guide Internal Diameter: .085″ (2,1 mm)
