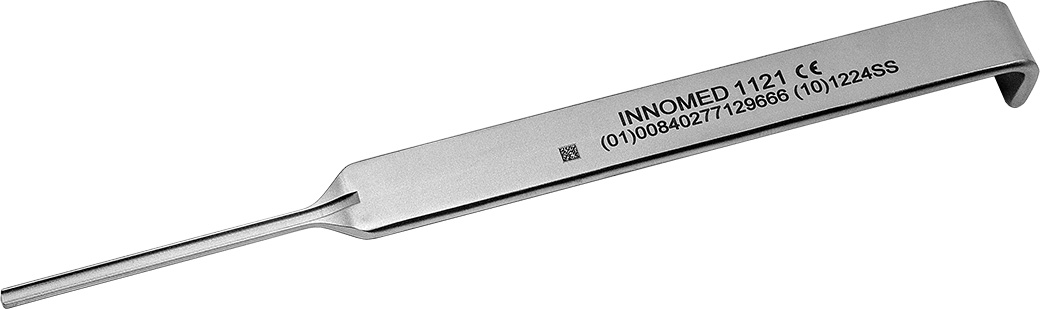

Sutter Ligament Release Guide – Guide Only
Designed by Dr. med. Damian Sutter

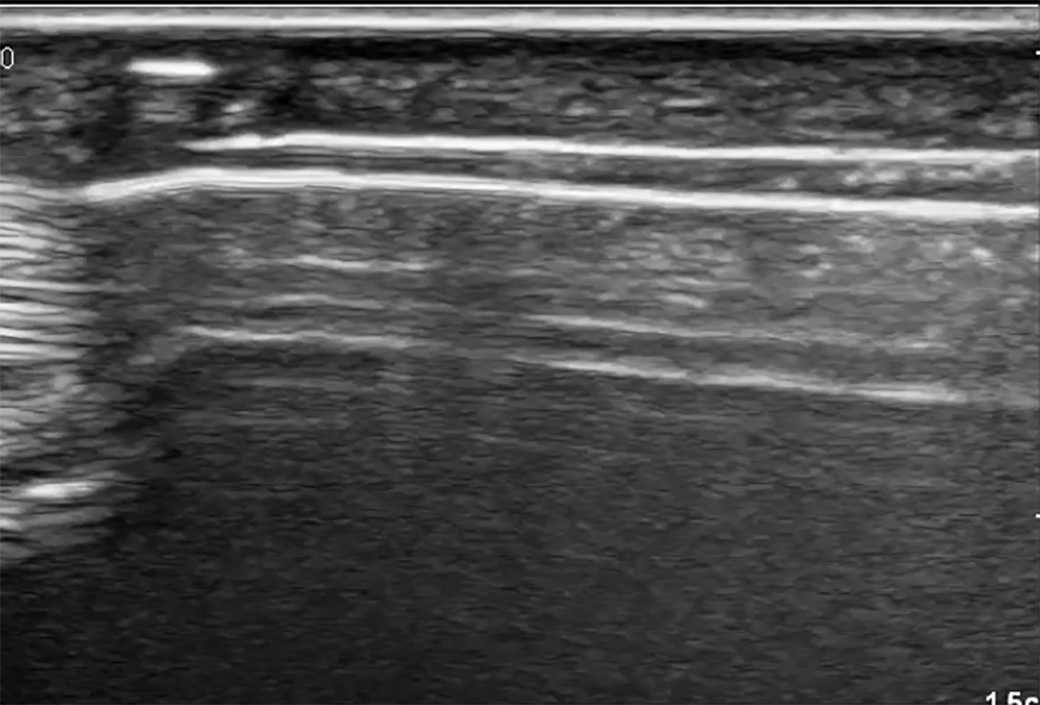

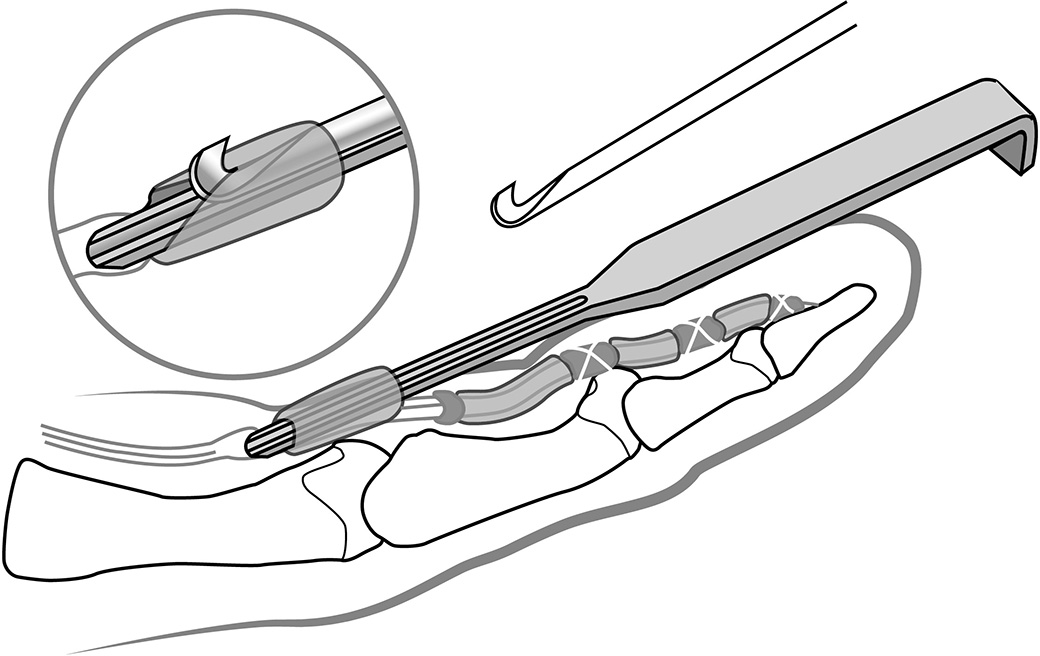

Designed for sonographically guided A1 annular ligament release, the guide is used with the included 2.3 mm hook knife, and the release is carried out via a small incision while the operation is carried out quasi percutaneously using sonographic control
Product Number(s)
1121
Dimensions:
Overall Length: 10.1″ (25,7 cm)
Insertion Blade Length: 2.125″ (5,4 cm)
Insertion Blade Height: 1,7 mm
Insertion Blade Width: 3,4 mm

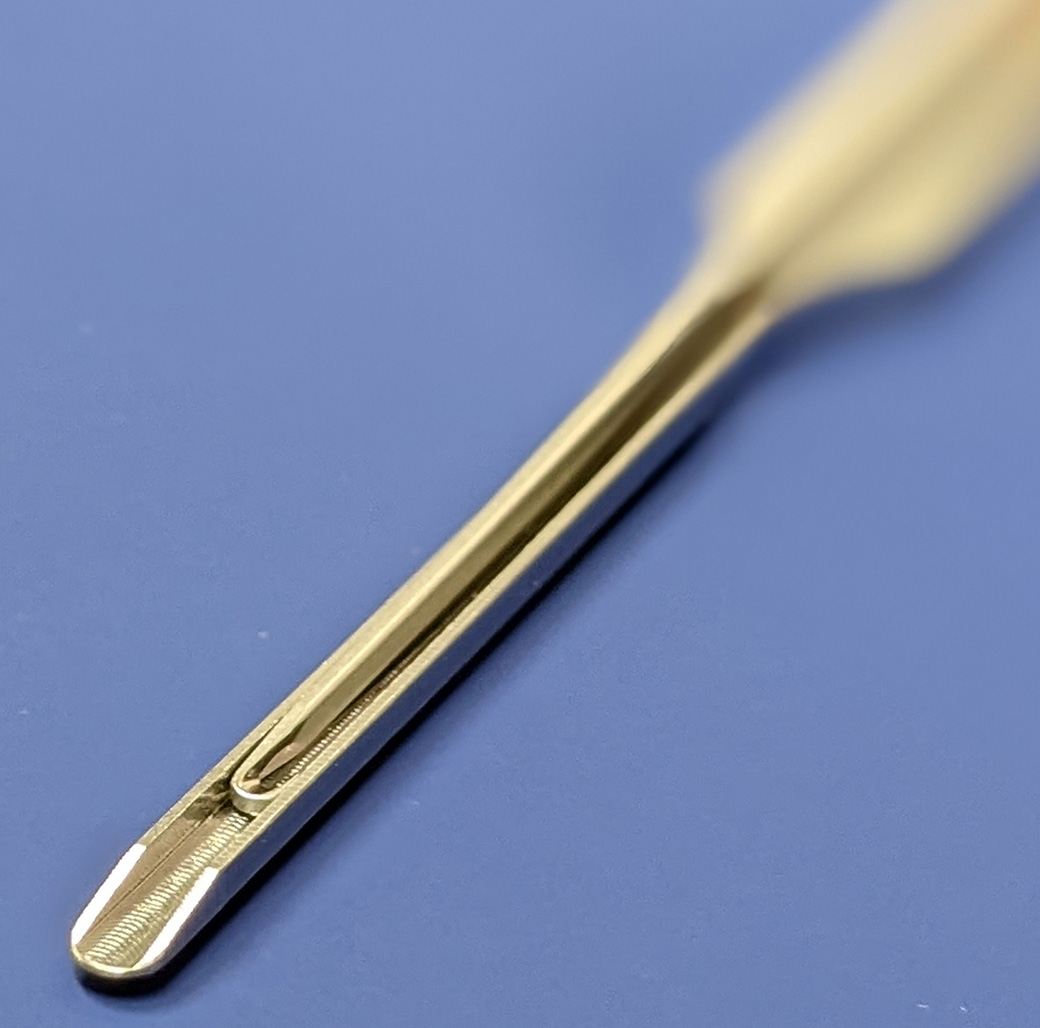

Guide Channel Width: 2,4 mm
