Thornberry Large Patient Hip Positioner
Robert L. Thornberry, MD

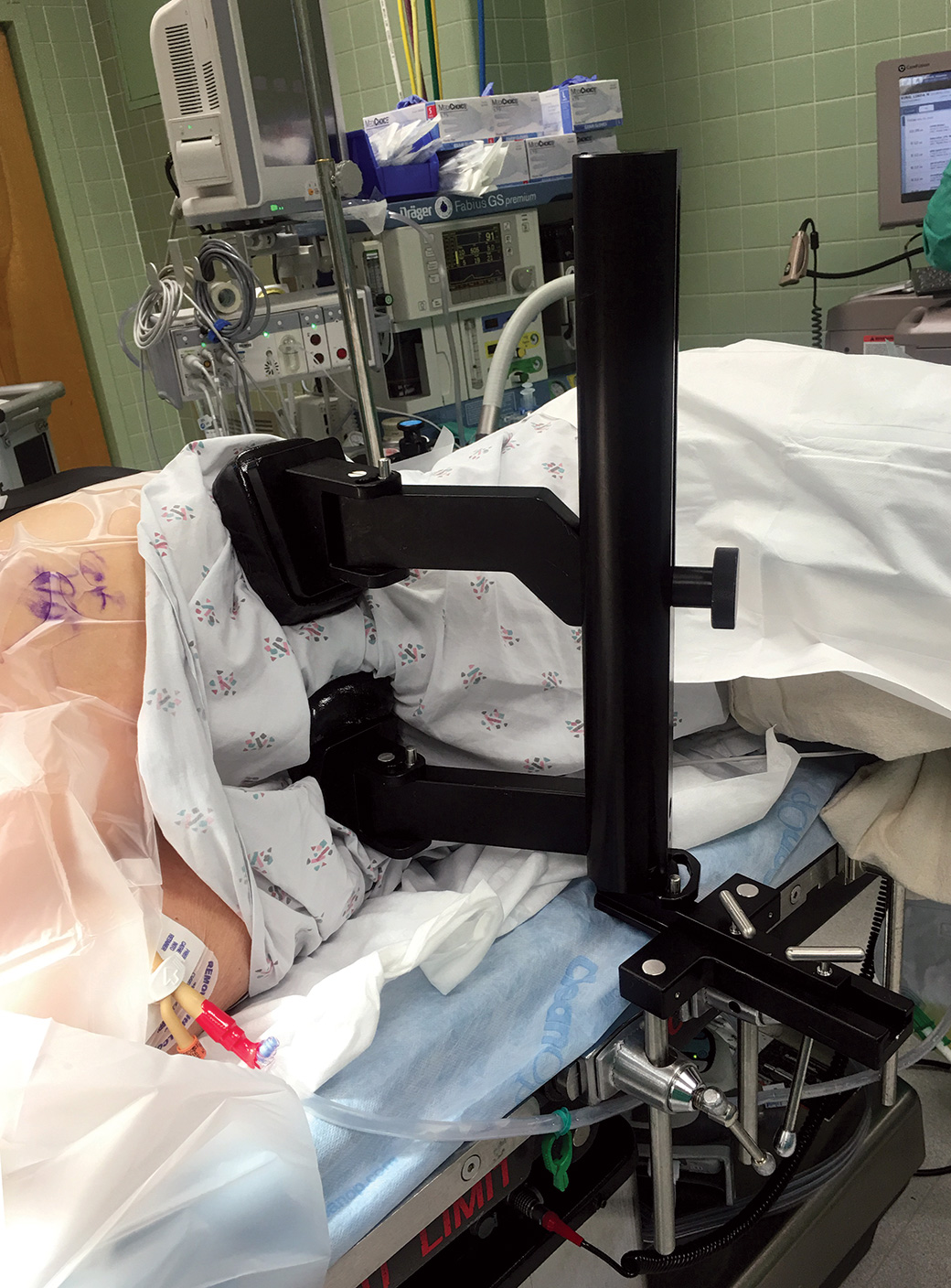

Designed to be adjustable yet sturdy, and is especially helpful when stabilizing a large patient during total hip and revision surgery
The Thornberry Hip Positioner is designed to attach directly to the operating table utilizing existing table clamps, or the Innomed #2595 Table Clamps, which are not included.
The upper arm assembly can be adjusted for height. Both arms include a push-button to allow the pad platform to swivel and lock into any of three fixed positions. The tall 18″ post also includes a push-button to allow the post/arms unit to swivel and lock into any of three fixed positions.
The complete unit is autoclavable except for the foam pads. The pads are made of semi-dense foam to help prevent pressure points and are sealed with a washable coating. The coating also helps to lessen the possibility of skin breakdown.
Product Number(s)
4160-00 [Complete Set]

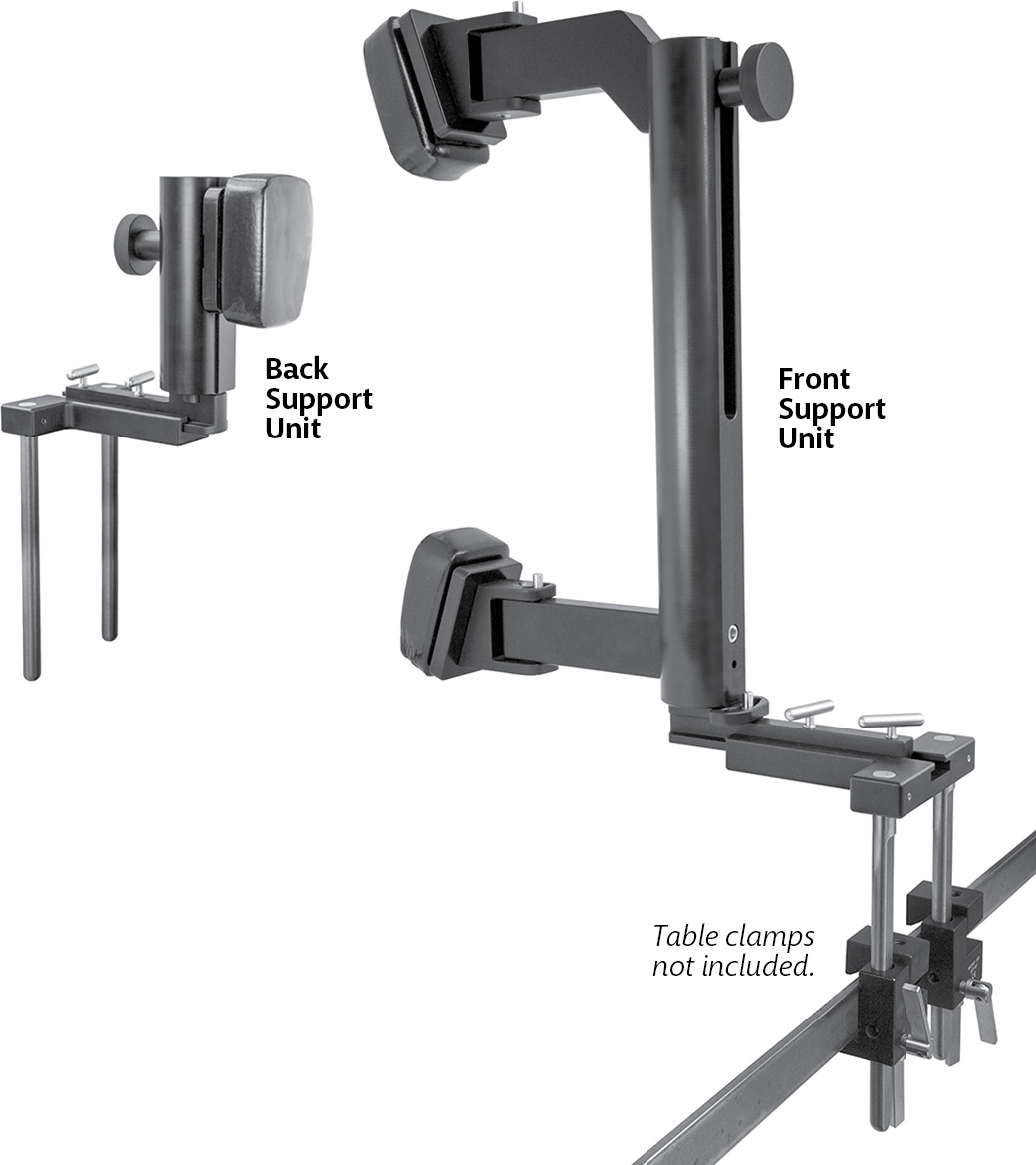

Set Includes / Available Individually:
4160-07 [7″ Back Support Post]
4160-18 [18″ Post with Fixed Lower Arm]
4160-AA [Adjustable Upper Arm]
4160-DTA [Double Table Attachment] Two (2) included with set; One (1) only with this number
4160-PB [Post Knob] Two (2) included with set; One (1) only with this number
4150-P [Pad Plate for Back Support]
4150-PD3 [Set of Three (3) Pads]
4150-S [Back Support Slider]
Optional Items:
2595 [Table Clamp] One only with this number
