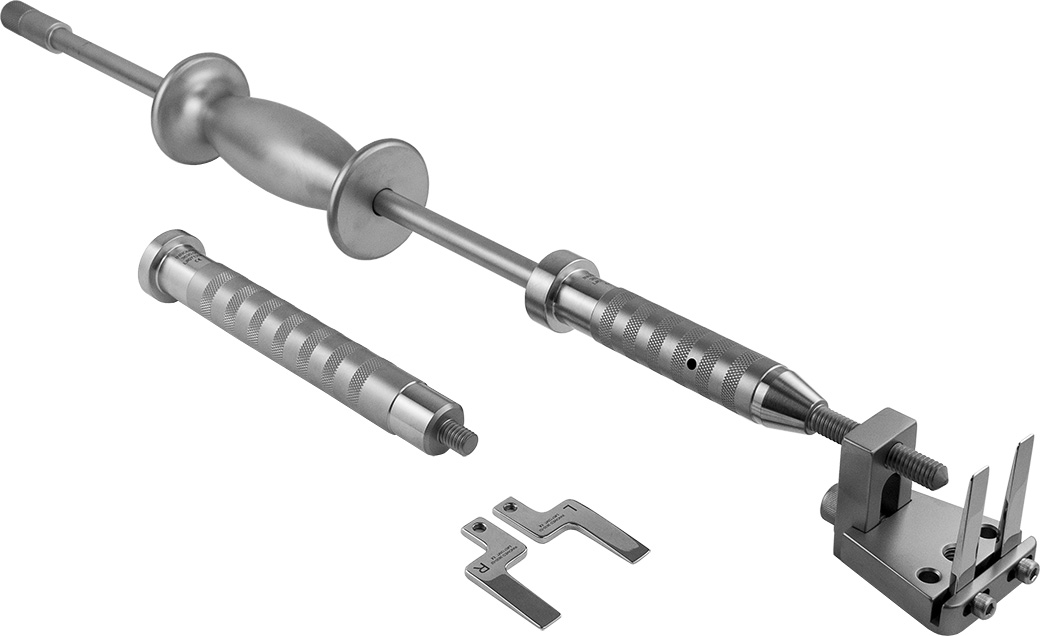

Tibial Component Extractor – Set with Standard Slap Hammer
Tibial Component Extractor – Set with Standard Slap Hammer - Image 2
Tibial Component Extractor – Set with Standard Slap Hammer - Image 3
Tibial Component Extractor – Set with Standard Slap Hammer - Image 4
Tibial Component Extractor – Set with Standard Slap Hammer - Image 5
Tibial Component Extractor – Set with Standard Slap Hammer - Image 6

Tibial Component Extractor – Set with Standard Slap Hammer

Universal extraction instrument clamps onto a tibial knee component for extraction

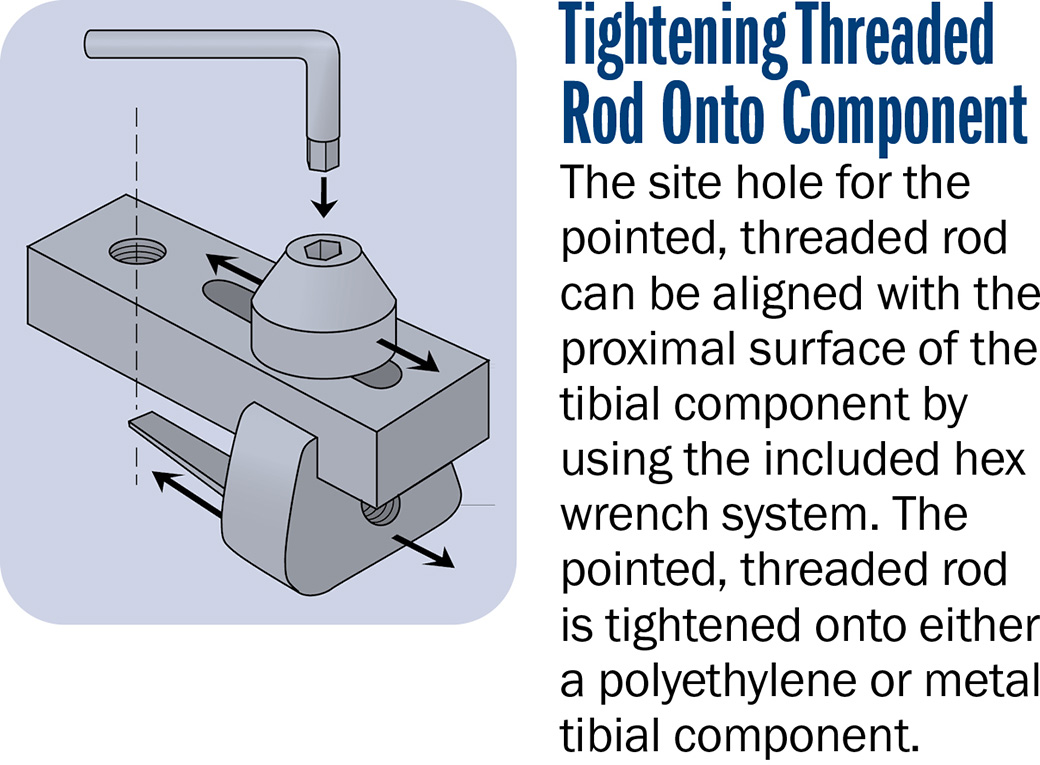

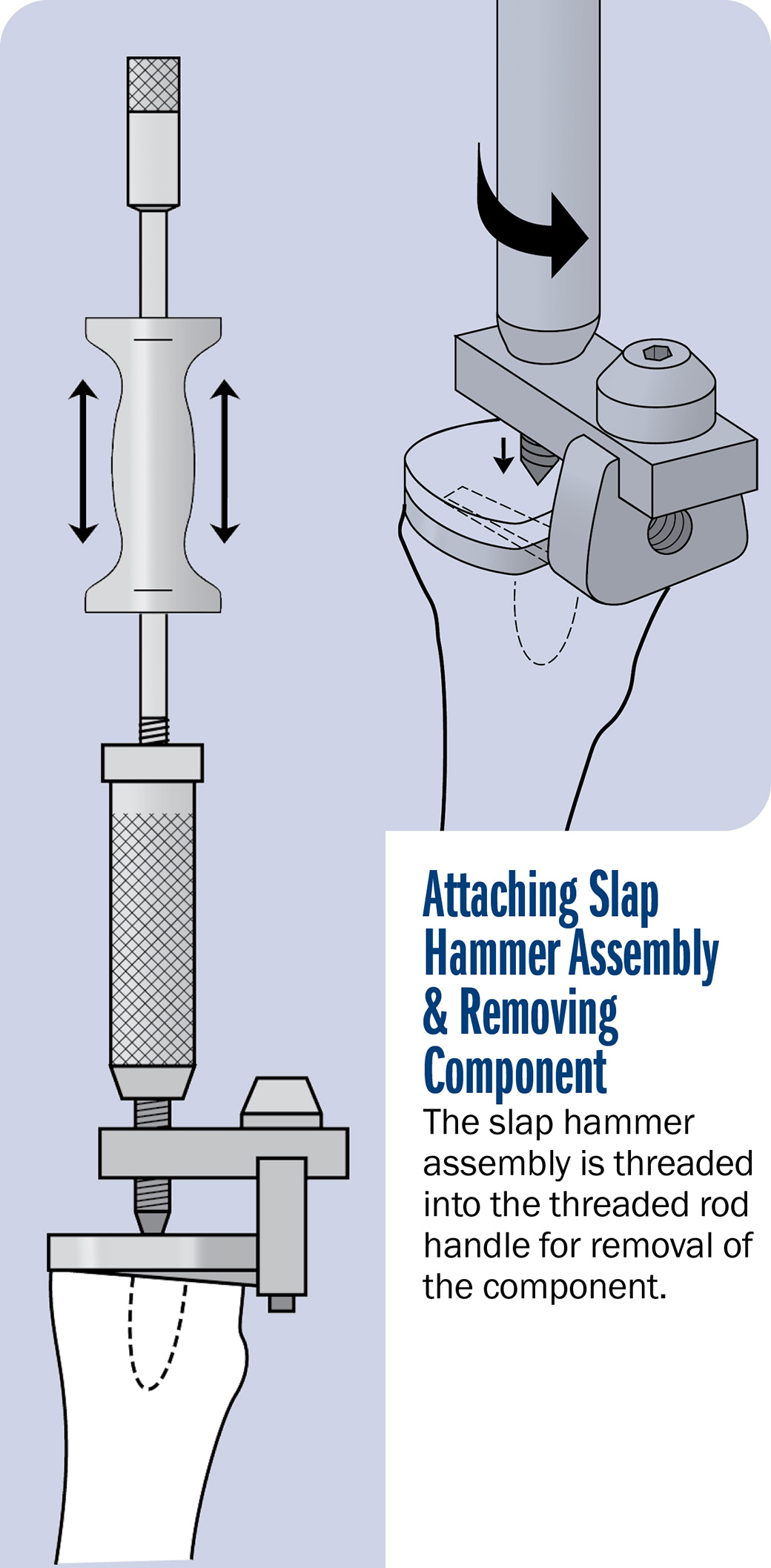

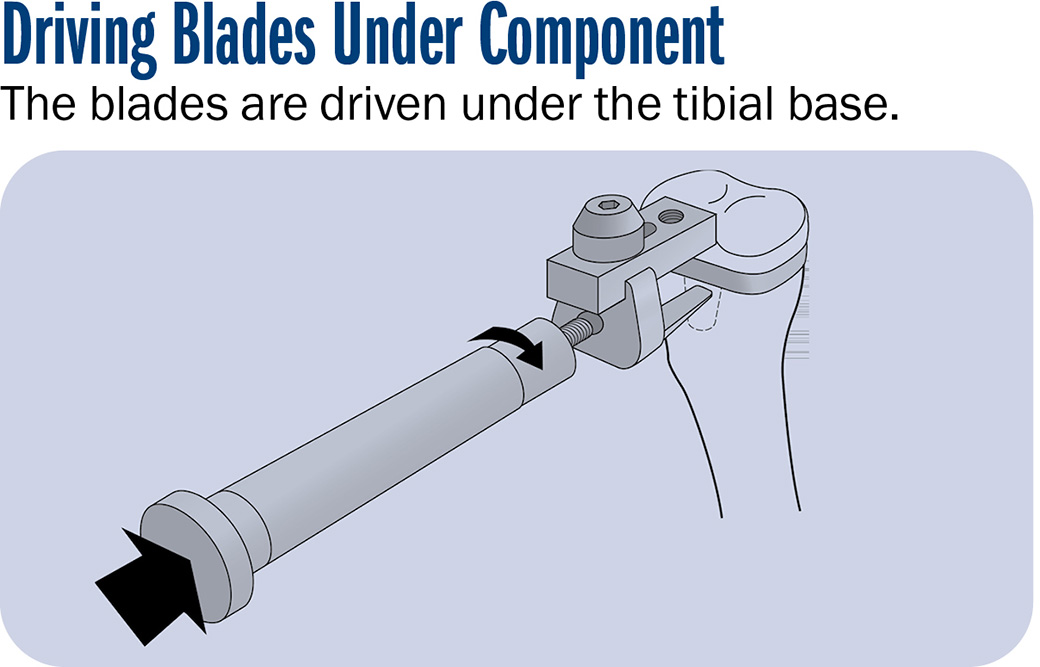

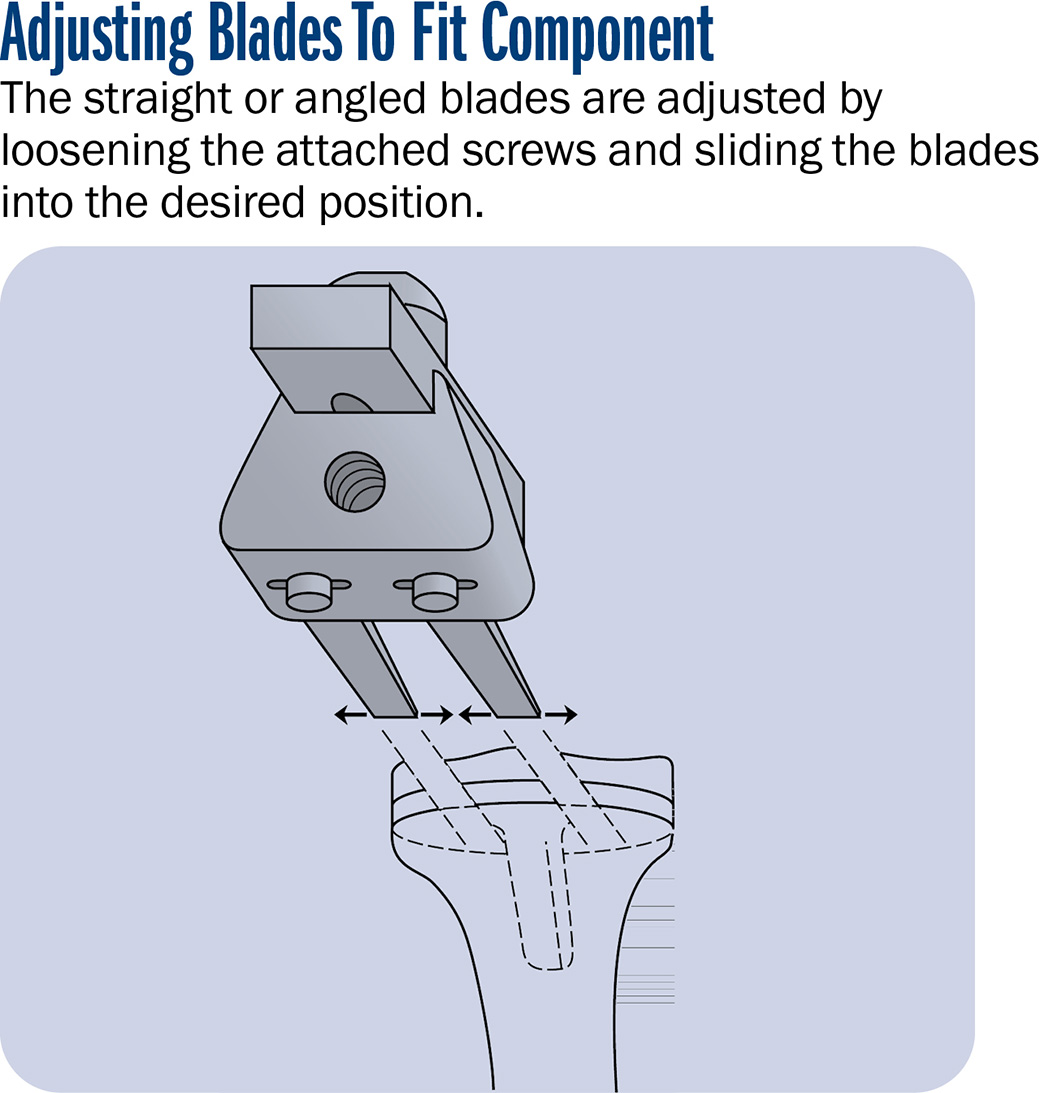

The Tibial Component Extractor is designed to lock onto a tibial component and extract in line with the stem or pegs. Two adjustable osteotomes are inserted on the underside of the component. A locking screw clamps on to the top of the extractor to secure the component. Includes standard slap hammer #3925.

Product Number(s)

3630

Dimensions
Overall Length (unfolded): 15.25″ (38,8 cm)
Dimensions Triangle Folded: 4″ x 4.25″ (10,2 x 10,8 cm)



Accuracy Statement for devices with a measuring function: Devices with a measuring function are considered non-critical, non-calibrated, and are intended for reference-only measurements. While it provides a helpful visual guide for relative measurements, it is not calibrated to specific precision standards. Measurements taken with this device should not be considered accurate enough for critical applications requiring strict dimensional tolerances. General manufacturing tolerances of +\- 1% at each graduation, or 2% of the full scale apply, but no conformance qualifications are provided or implied.
